VICTORY SERIES
Victory Series is a great choice for moisture removal. This high efficient and high-performance dehumidifier is the perfect solution for residential and commercial use. It is rugged with adjustable feet for leveling. Its rubber feet eliminates vibration. Dehumidifier can be used as standalone or by connecting to ductwork.
MODEL V55
Front View
Features:
- Zinc plated and powder painted sturdy metal frame
- Compact, lightweight with high-performance
- Can be ducted
- Whole house dehumidifier with duct connection
- Ergonomic handles
- Auto-restart after power outage
- Digital Display with Function Keys- Displays Space Humidity & Humidity Set Point
- Advanced Control Logic
- Soft start feature protects compressor
- Allows defrost on demand
- Integral LED diagnostics
Technical Data:
- Performance @ 80oF, 60%: 55 PPD
- Performance @ 70oF, 60%: 44 PPD
- Performance @ 90oF, 80%: 90 PPD
- Refrigerant: R410A
- F.L.A. at Rated Conditions (80oF, 60%): 5.1A
- Airflow: 265 CFM
- Sound Pressure Level: 51 dBa
- Drain Connection: 3/4" MPT
- Return Duct Connection (Large & Small): 10" & 5"
- Supply Duct Connection: 10"
- Condensate Pump (Optional): External Mount
- Filter: Washable
- Coverage Area: 1,800 sq. ft.
- Digital Control: Yes
- Power Cord: 8.5′, 115 VAC Grounded
- Operating Temperature Range: 33-90oF
- Operating Relative Humidity Range: 35-99%
- Weight: 68 lbs.
- Dimensions (L x W x H): 23” x 14” x 16.5”
- Compressor Warranty: 5-Years
- Basic Parts Warranty: 1-Year
Diagonal View
MODEL V70

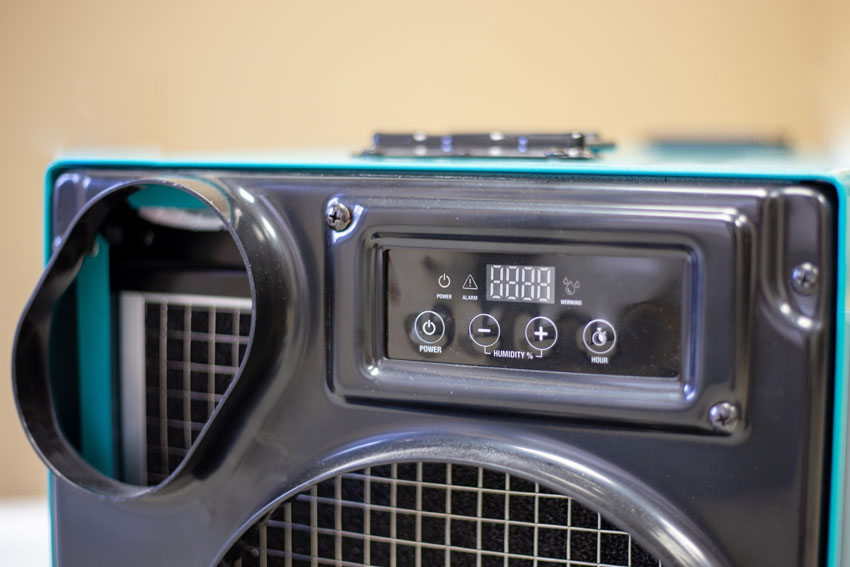

Control Close-up
Features:
- Zinc plated and powder painted sturdy metal frame
- Compact, lightweight with high-performance
- Can be ducted
- Whole house dehumidifier with duct connection
- Ergonomic handles
- Auto-restart after power outage
- Advanced Control Logic
- Soft start feature protects compressor
- Allows defrost on demand
- Integral LED diagnostics
Technical Data:
- Performance @ 80oF, 60%: 75 PPD
- Drain Connection: 3/4" MPT
- Sound Pressure Level: 54 dBa
- Refrigerant: R410A
- F.L.A. at Rated Conditions (80oF, 60%): 6.0A
- Airflow: 380 CFM
- Return Duct Connection (Large & Small): 10" & 5"
- Supply Duct Connection: 10"
- Basic Parts Warranty: 1-Year
- Filter: Washable
- Coverage Area: 2,000 sq. ft.
- Digital Control: Yes
- Power Cord: 8.5′, 115 VAC Grounded
- Operating Temperature Range: 33-90oF
- Operating Relative Humidity Range: 35-99%
- Weight: 110 lbs.
- Dimensions (L x W x H): 25” x 21” x 20”
- Compressor Warranty: 5-Years
- Condensate Pump (Optional): External Mount

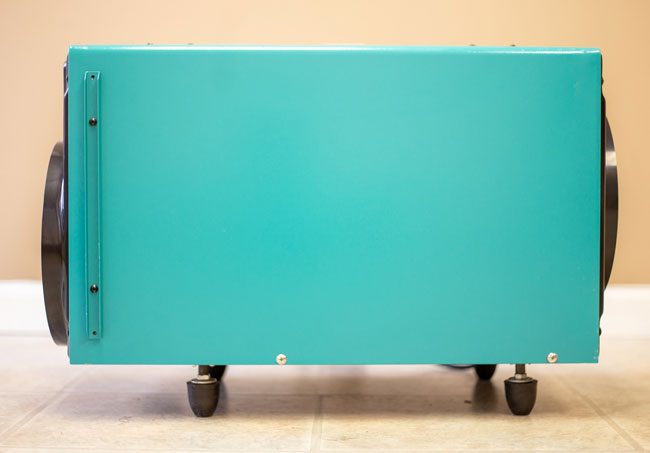

Side View
MODEL V100

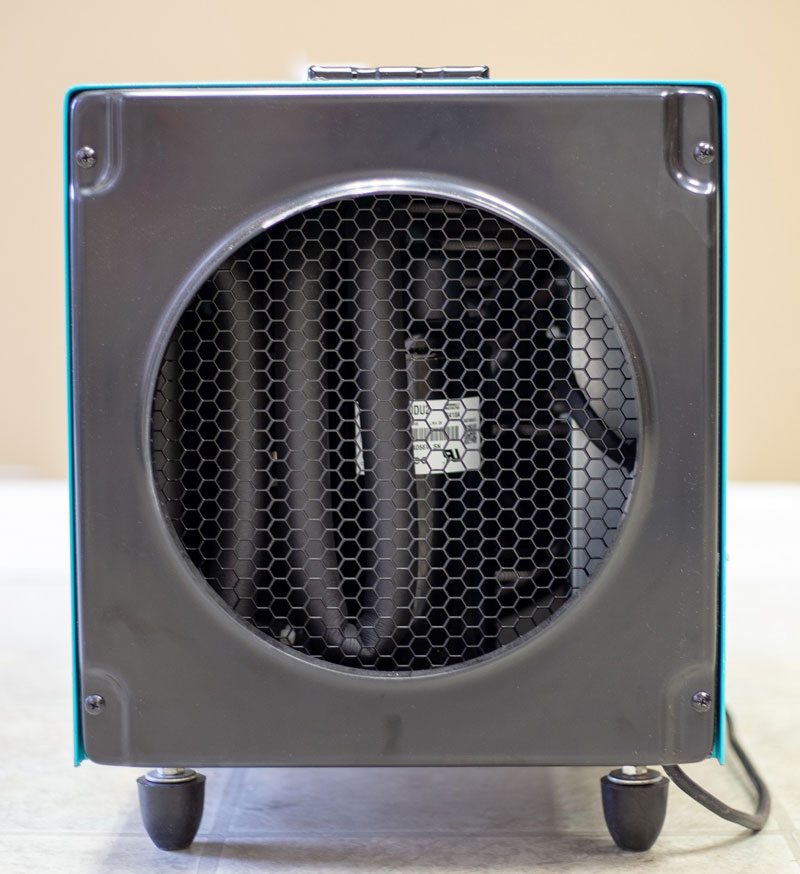

Back View
Features:
- Zinc plated and powder painted sturdy metal frame
- Compact, lightweight with high-performance
- Can be ducted
- Whole house dehumidifier with duct connection
- Ergonomic handles
- Auto-restart after power outage
- Advanced Control Logic
- Soft start feature protects compressor
- Allows defrost on demand
- Integral LED diagnostics
Technical Data:
- Performance @ 80oF, 60%: 106 PPD
- Performance @ 70oF, 60%: 65 PPD
- Performance @ 90oF, 80%: 200 PPD
- Refrigerant: R410A
- F.L.A. at Rated Conditions (80oF, 60%): 8.9A
- Airflow: 520 CFM
- Sound Pressure Level: 56 dBa
- Drain Connection: 3/4" MPT
- Return Duct Connection (Large & Small): 10" & 5"
- Supply Duct Connection: 10"
- Condensate Pump (Optional): External Mount
- Filter: Washable
- Coverage Area: 3,000 sq. ft.
- Digital Control: Yes
- Power Cord: 8.5′, 115 VAC Grounded
- Operating Temperature Range: 33-90oF
- Operating Relative Humidity Range: 35-99%
- Weight: 130 lbs.
- Dimensions (L x W x H): 26.5” x 21” x 22”
- Compressor Warranty: 5-Years
- Basic Parts Warranty: 1-Year

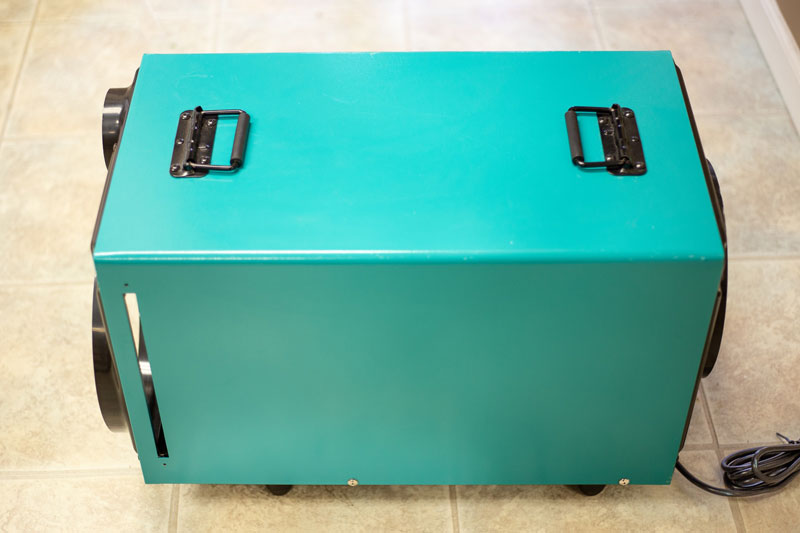

Top View
